These images display the results from some preliminary testing we have carried out with GPS receivers.
(GPS = Global Positioning System)

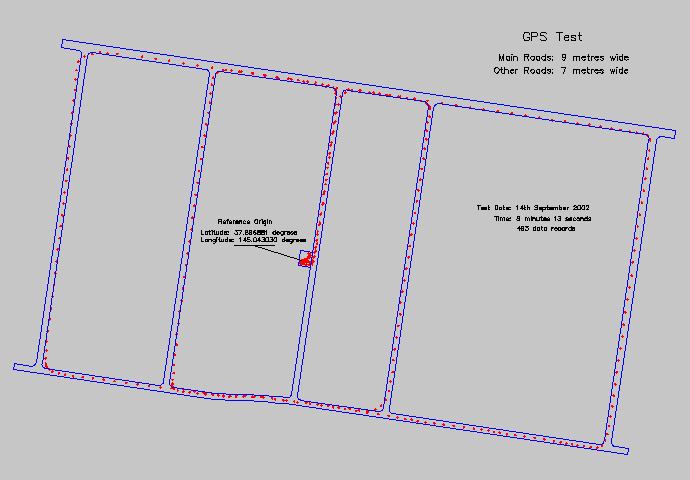

The above is a plot of positions recorded along a vehicle's motion path, with the roads
travelled included in the display. This gives an indication of the level of accuracy
achievable when using a single GPS receiver.

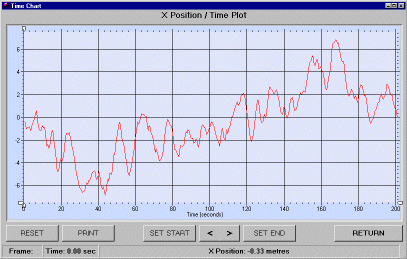

This image displays the variation of the X position with time for a static receiver.

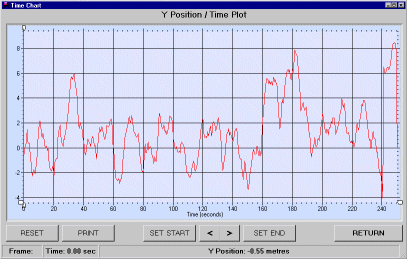

This image displays the variation of the Y position with time for a static receiver.
This image displays the scatter of the receiver position with time for a static receiver recording its position at a rate of two hertz, recording for several minutes duration.
