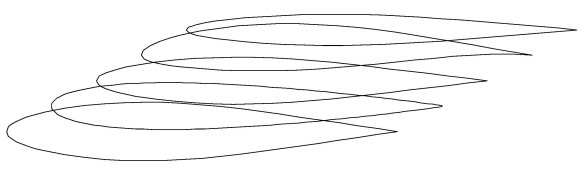

We have prepared a CAD library of just over 1700 standard aerofoil sections.

This library contains each aerofoil in DWG and DXF formats, and also
as a text file containing a list of coordinate points.

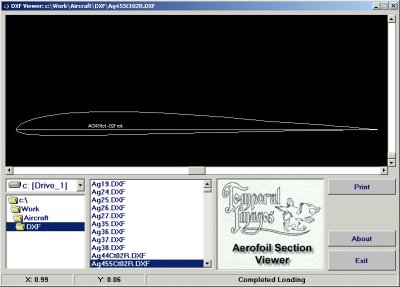

To enable rapid viewing of the sections we include a simple
DXF file viewer and also a copy of the free ProgeSOFT Drawing Viewer
(included with the kind permission of ProgeSOFT
http://www.progesoft.com)




Enquiries about this library are welcome.

Please e-mail us for more information.
